- Built to Lift. Engineered to Last.
PQ-704
PQ-709A
PQ-714

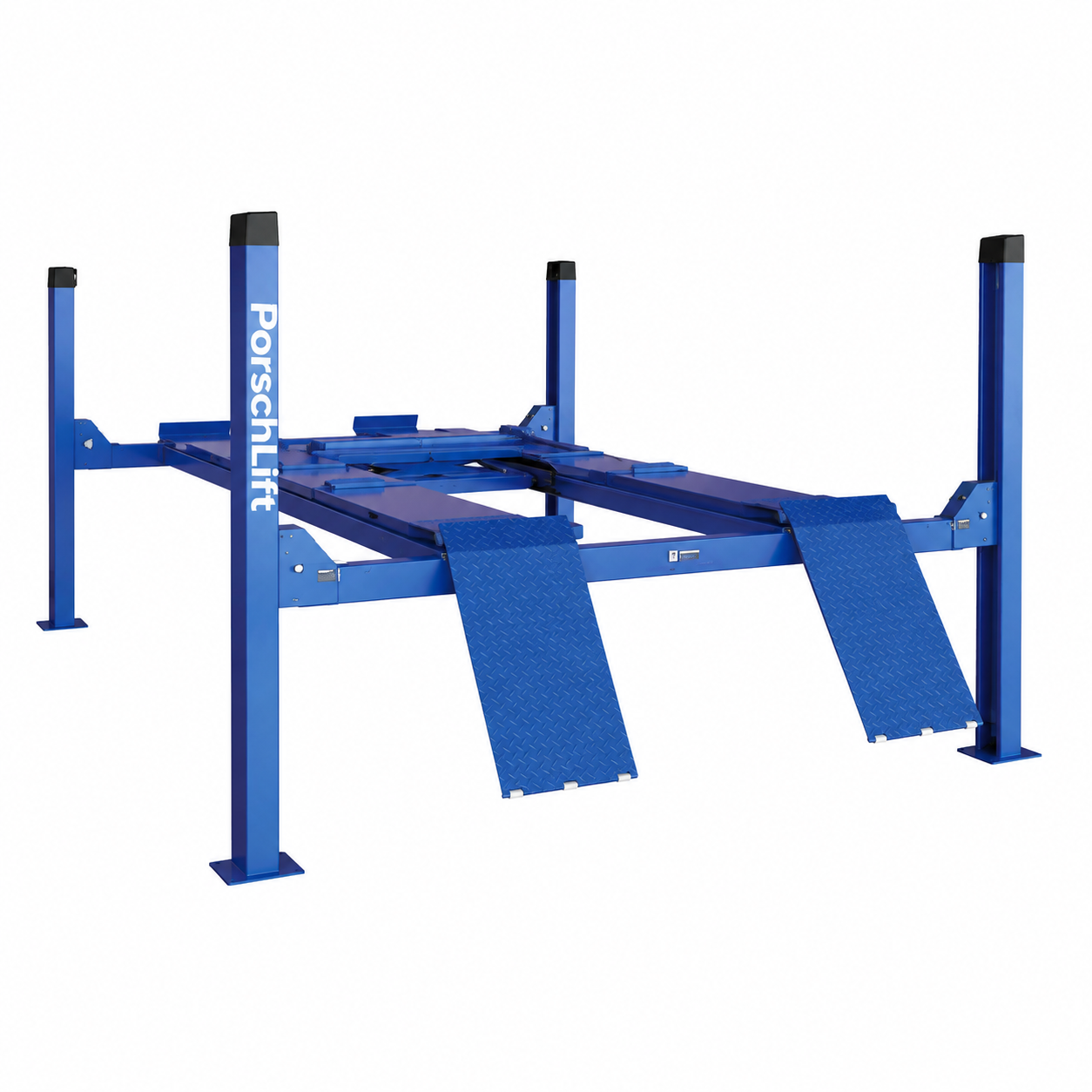

Standard Four Post Lift – 4.0T
| Specification | Value |
|---|---|
| Product Model | PQ-704 |
| Overall Dimensions (L × W × H) | 5395 × 3676 × 2300 mm |
| Overall Width | 3680 mm |
| Platform Length | 4400 mm |
| Length Between Columns | 4145 mm |
| Overall Length | 5395 mm |
| Width Between Columns | 3040 mm |
| Runway Width | 500 mm |
| Width Between Runways | 950–1100 mm |
| Lifting Height | 1850 mm |
| Lifting Time | 50 s |
| Lifting Capacity | 4000 kg |
| Packing Size | 4550 × 560 × 820 mm |
| Gross Weight | 1060 kg |
Four Post Lift – 4.0T
| Specification | Value |
|---|---|
| Product Model | PQ-709A |
| Overall Dimensions (L × W × H) | 5656 × 3464 × 2222 mm |
| Overall Width | 3464 mm |
| Platform Length | 4600 mm |
| Length Between Columns | 4290 mm |
| Overall Length | 5656 mm |
| Width Between Columns | 2854 mm |
| Runway Width | 504 mm |
| Width Between Runways | 1000–1100 mm |
| Lifting Height | 1950 mm |
| Lifting Capacity | 4000 kg |
| Lifting Time | 50 s |
| Packing Size | 4650 × 560 × 735 mm |
| Gross Weight | 1140 kg |
Heavy Duty Four Post Lift – 6.5T
| Specification | Value |
|---|---|
| Product Model | PQ-714 |
| Overall Dimensions (L × W × H) | 7030 × 3592 × 2254 mm |
| Overall Width | 3592 mm |
| Platform Length | 5828 mm |
| Length Between Columns | 5429 mm |
| Overall Length | 7030 mm |
| Width Between Columns | 2917 mm |
| Runway Width | 508 mm |
| Width Between Runways | 1080–1180 mm |
| Lifting Height | 1950 mm |
| Lifting Time | 65 s |
| Lifting Capacity | 6500 kg |
| Packing Size | 5975 × 560 × 910 mm |
| Gross Weight | 1720 kg |
Tell us your required quantity, destination country and project requirements. Our team will provide product details, configuration recommendations and a factory-direct quotation for your project.
