- Built to Lift. Engineered to Last.

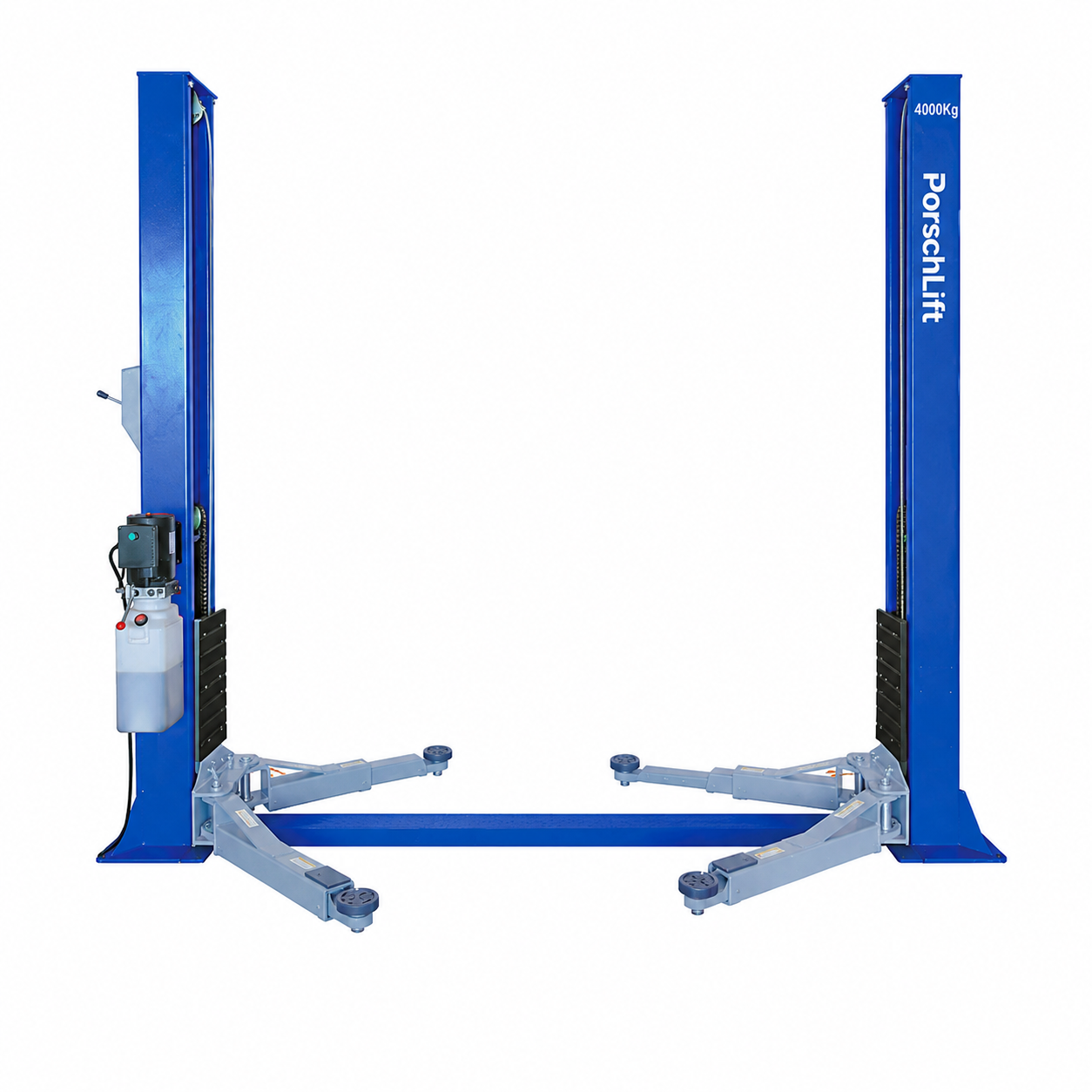

PQ-240-SBS
| Specification | Value |
|---|---|
| Product Model | PQ-240-SBS |
| Rated Lifting Capacity | 4000 kg |
| Overall Machine Weight | 650 kg |

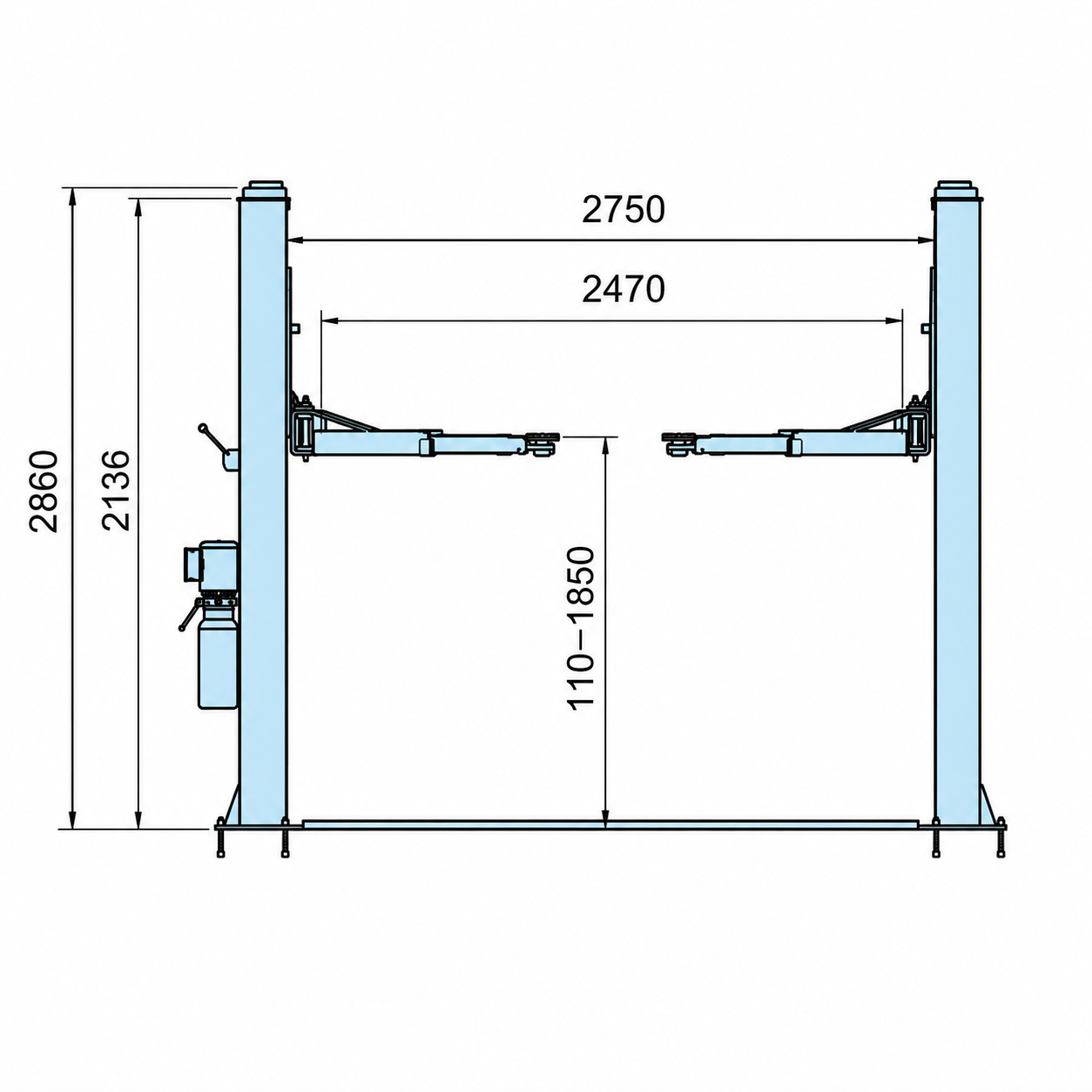

| Lift Height Range | 110–1850 mm |
| Overall Machine Height | 2860 mm |

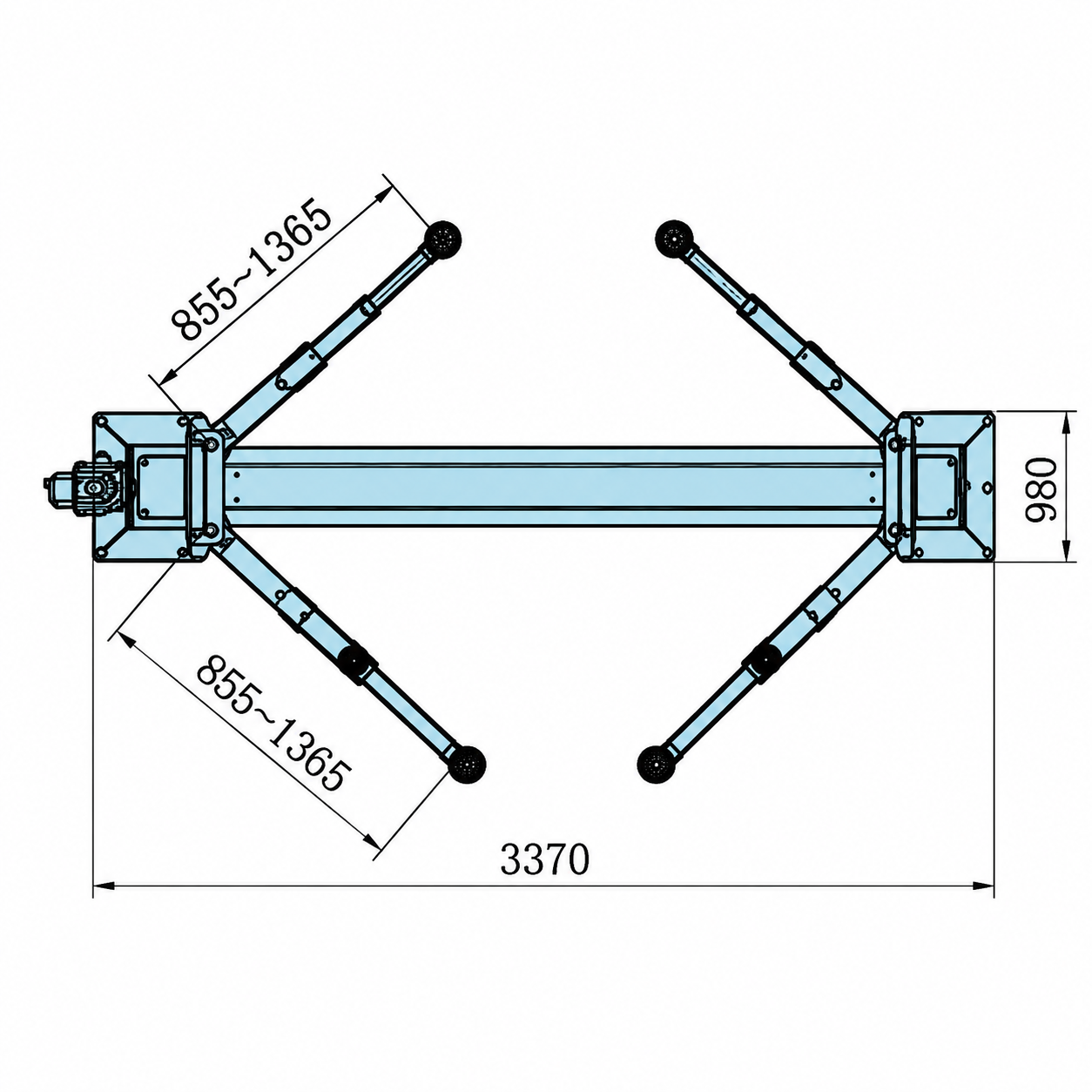

| Overall Machine Width | 3370 mm |
| Clearance Width | 2470 mm |
| Two-Section Swing Arm Length | 855–1365 mm |
| Three-Section Swing Arm Length | 580–1120 mm |
| Motor Power | 2.2 kW |
| Power Supply | 215–240V (50Hz) / 380–415V (60Hz) |
| Rise Time | ≤50 s |
| Lowering Time | ≥20 s |
| Noise Level | ≤75 dB |
Tell us your required quantity, destination country and project requirements. Our team will provide product details, configuration recommendations and a factory-direct quotation for your project.
